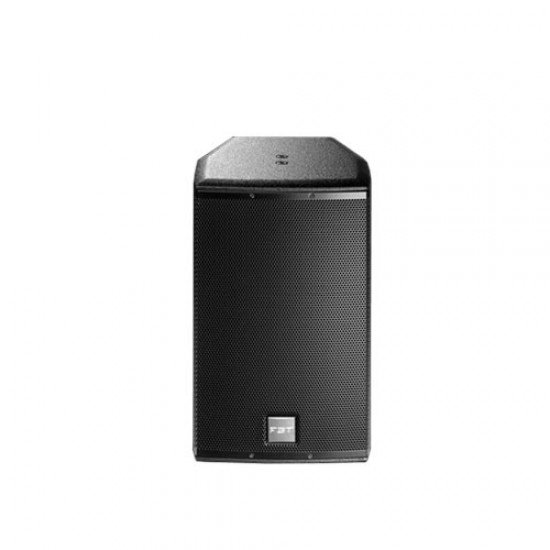

ARCHON 105
PASSIVE SOUND REINFORCEMENT 200W / 8 OHM - 115DB SPL
- 1 x 5” (1.25” VC) custom made LF woofer with rubber surround
- 1 x 1” HF dome tweeter
- 4 x M5 threaded rigging points
- 2-way, passive sound reinforcement systems
- 12mm (0.47”) baltic birch plywood cabinets
- Custom designed LF woofers, made in Italy
- Custom designed HF dome tweeter, Made in Italy
- Crossover networks equipped with 4 x Euroblock speaker terminals; factory preset for optimal line transformer installation
- Multiple M5 threaded rigging points
- Acoustically transparent steel grille and antidust protection cloth New FBT rotatable logo badge following vertical or horizontal installation
- Optional mounting hardware
- Optional line transformer 50W
TECHNICAL SPECIFICATIONS
CODE:36250
CONFIGURATION:2 way
RECOMMENDED AMPLIFIER:200 W RMS
LONG TERM POWER:100 W
SHORT TERM POWER:400 W
NOMINAL IMPEDANCE:8 ohm
FREQUENCY RESPONSE:70Hz - 22KHz -6dB
LOW FREQUENCY WOOFER:5 - 1.25 coil inch
HIGH FREQUENCY DRIVER:1 - 1 coil dome inch
SENSITIVITY (@1W/1M):89 dB
MAXIMUM SPL CONT/PEAK:112/115 dB
DISPERSION:110° HxV
CROSSOVER FREQUENCY:3 KHz
RECOMMENDED HP FILTER:60hz - 24dboct
RECOMMENDED EXTERNAL FILTER:
INPUT CONNECTOR:4 x Euroblock
NET DIMENSION (WXHXD):180x300x180 - 7.08x11.81x7.08 mm/inch
NET WEIGHT:4/8.8 kg/lb
